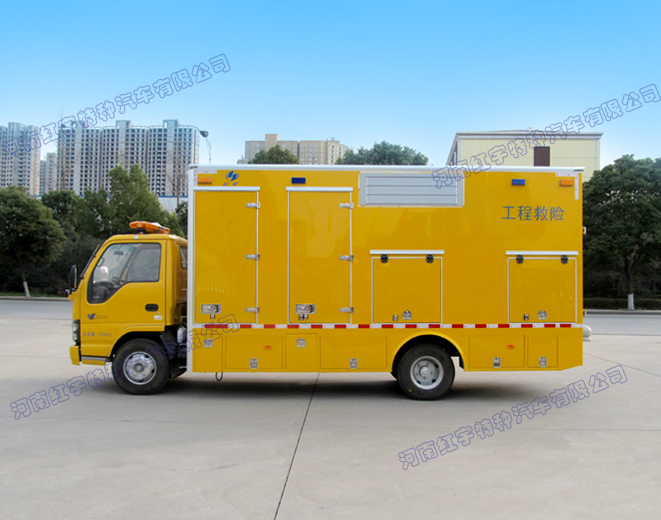

HYZ5072XXH emergency vehicles

Hongyuemergencyvehicleseriesisaspecialvehicledevelopedbyhenanhongyuspecialvehicleco.,ltd.

  • Product Details
  •

    Hongyu emergency vehicle series is a special vehicle developed by henan hongyu special vehicle co., ltd. for the pipe network and road surface quick rescue and repair operations of water supply and drainage, municipal administration, heat, gas, electric power, airport, highway and other industries. In case of emergency, it can reach the site quickly, and most emergency repair operations, such as cutting, dismantling, drainage, pipe welding, etc. can be realized by using vehicle-mounted power supply and vehicle-mounted tools, which greatly improves the emergency response capacity and the efficiency of emergency repair. The car is mainly composed of qingling chassis, muffler carriage, generator set, electric control system and special tools. It is a mature type of vehicle, with the ministry of industry and information technology announcement catalogue, irs tax exemption atlas, the ministry of environmental protection information public notice and "CCC" certificate, can be yellow card on the road.


    Technical reference number


    Vehicle type    HYZ5072XXHReversing monitor      Color LCD monitor, 7 - inch display
    The total quality 7300KgCompartments within the lighting      Direct current lamps for each warehouse
    Overall dimensions   6900,7100×2040×3070mmSafety grounding device Special ground wire and ground anchor assembly
    Emission standards    The V emissionsFire safety installation  2kg dry powder fire extinguisher
    Automobile chassisQL1070A5KAY single-seat chassis, isuzu engine, power 96KW, wheelbase 3815mm, medium-cooled supercharged power, power-assisted direction, diesel, national V emission, oil brake, air conditioning, diversion cover;Special tools
    Mute compartments bodyTwo storehouses (generator set storehouse and pump storehouse) : silent type, including dryness reducing system, ventilation system, heat insulation system and anti-skid ground plate, the outside size of the box is 5200 * 2040 * 2100mmThe pump systemWith multiple submersible pumps, the flow rate can be up to 1600m3/h.
    Generating set       Diesel generator sets of different powers are optional, with mains power floating charge, water jacket heater, 8-hour base oil tank, etc.Light submersible pumpLight and high speed submersible flood control pump, aluminum alloy pump body, stainless steel pump blade, stainless steel spindle, flow rate 400m3/h, head 10 meters, power 18.5kw, weight 35Kg;

    Car lift


    Lighting system

    Working height 4.5m, horizontal/vertical rotation 3600/3300, power: 2*1000W, (metal halide lamp, electric, remote-controlled, adjustable, effective lighting distance 60m);Frequency conversion control cabinetOne control and two frequency conversion control cabinet, modular design, weight less than 50Kg, can be used for normal operation of power supply; When the pump works normally, the speed and flow of the pump can be adjusted continuously. ABB low voltage inverter and ABB leakage circuit breaker;
    Control system     IP44, 380V/220V, including 4 output interfacesForm a complete set of cableProfessional submersible cable is used. The cable with a length of 50 meters is equipped with a single pump. It is divided into two cables. The cable shall be provided with steel sheath of length no less than 100mm;
    Hydraulic leg

    Single leg 6T, double leg linkage/single leg independent control,


    Remote control and manual control;


    Supporting the hoseUse professional hose, single pump hose length of 50 meters, divided into two sections, each section of 25 meters, between the drainage belt using fast connector.
    Safety warning    LED long row flash (yellow/yellow) alarm light sirenForm a complete set of floating bodyIntegral forming, bearing not less than 60kg.

    Note: optional tools can be added or subtracted according to your actual needs; The interior tools can be customized according to the actual needs of users.
